SAP with XQL
Every access from the SAP data source to an SAP system is expressed in XQL (XtractQL). XQL is a compact, SQL-like description language. A single statement is enough to read a table, run an ABAP report, call an RFC function module, execute a SAP Query or query a BW cube via MDX.
This page explains the language by example. The complete formal grammar is at the end of the page.
Where you enter XQL

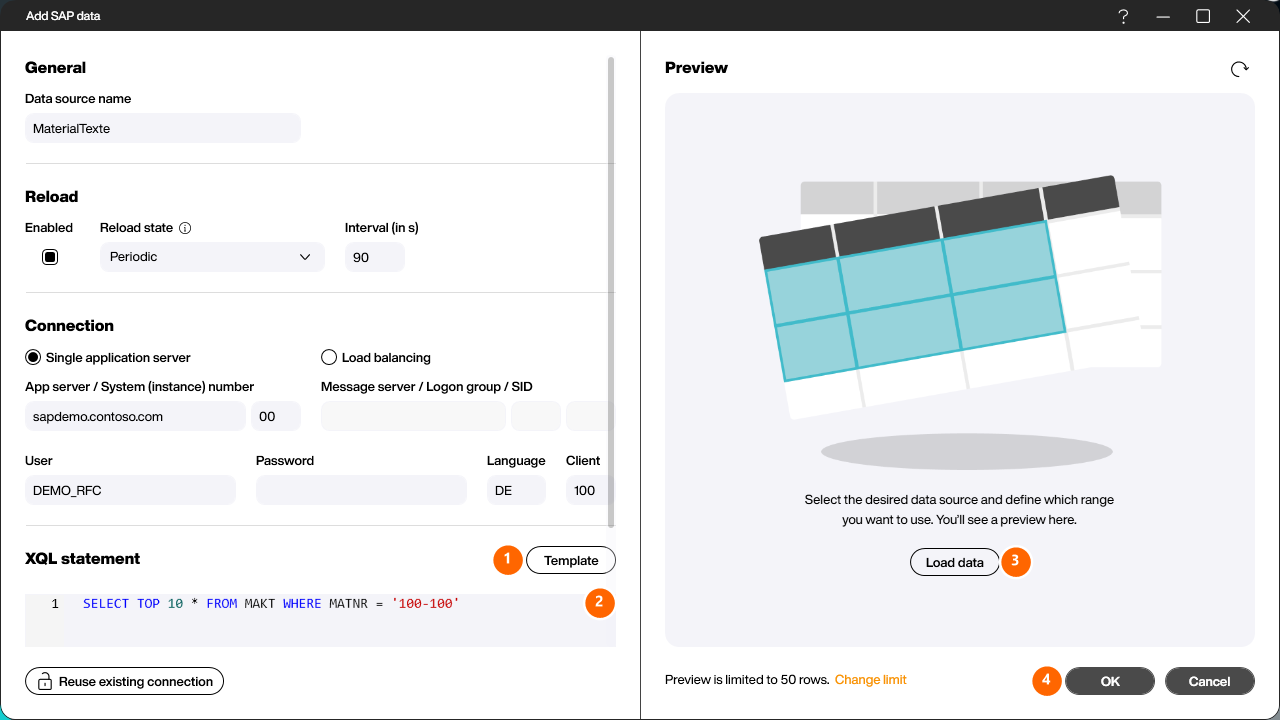

The statement is stored in the SAP data source dialog in the [XQL statement] section. How to create the data source itself is described in the SAP article.
Use the [Template] button to insert a ready-made sample statement (1) — that is the fastest way to get started. You write the statement itself in the editor with syntax highlighting (2). [Load data] generates a preview of the data (3), and [OK] creates the data source (4).

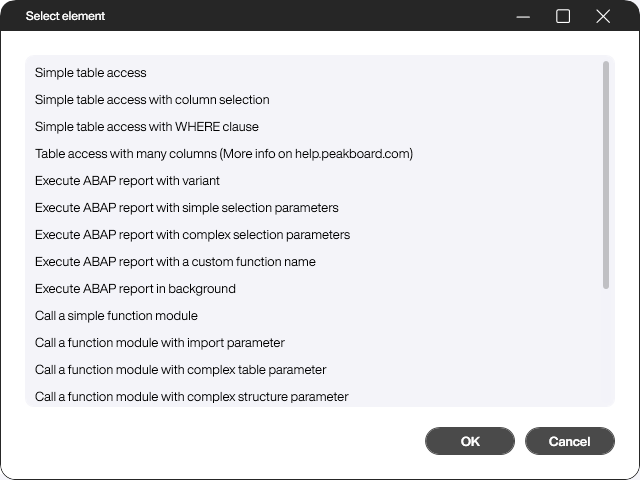

The [Template] button offers 19 templates covering all common access types. Select an entry and confirm with [OK] — this replaces the entire content of the editor.

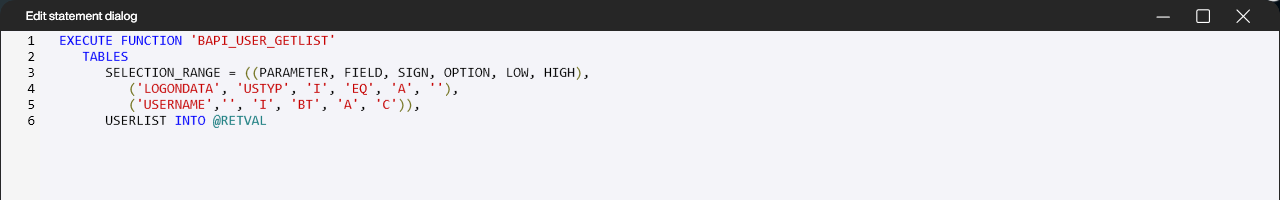

For longer statements, open the editor in a separate window using the enlarge icon.
Basic rules
Before we get to the individual access types, a few rules that apply to all statements:
- Keywords are not case-sensitive.
SELECT,selectandSelectare equivalent. This documentation uses uppercase for readability. - Multiple statements are separated by
;. The semicolon may be omitted on the last statement. - Strings are enclosed in single or double quotes (
'MAKT'or"MAKT") and must end on the same line. To include a quote in the text, double it ('Peter''s'). - Pass-through strings are enclosed in
[...]or|...|and may span several lines. They are handed to SAP unchanged and are used for MDX. - Comments are written as
// to end of lineor as/* block */. - Synonyms:
WITH=WITH-OPTIONS,EXPORTS=EXPORTING,IMPORTS=IMPORTING,LIKE=MP,BETWEEN=BT,I=INCLUDE,E=EXCLUDE. Instead ofEQ,NE,LT,GT,LE,GEyou can also write=,!=or<>,<,>,<=,>=.
Table access
The simplest case: you read an SAP table like a database table.
SELECT TOP 10 * FROM MAKT;
TOP limits the number of rows, SKIP skips rows at the beginning. Both values must be at least 1.
Instead of * you can provide a column list — optionally with AS and an alias:
SELECT TOP 10 MATNR, MAKTX FROM MAKT
SELECT TOP 10 MATNR AS MaterialNumber, MAKTX AS Description FROM MAKT
WHERE clause for table access
For table access you get a full boolean expression: conditions can be combined with AND and OR and grouped with parentheses.
SELECT TOP 10 * FROM MAKT WHERE MATNR = '100-100'
SELECT * FROM MARA WHERE (MTART EQ 'FERT' OR MTART EQ 'HALB') AND MEINS EQ 'ST'
The following operators are allowed:
| Operator | Meaning | Example |
|---|---|---|
EQ NE LT GT LE GE |
Comparison | WHERE MTART EQ 'FERT' |
LIKE (= MP) |
Pattern match | WHERE MATNR LIKE '100-4%' |
BETWEEN (= BT) |
Value range | WHERE ERSDA BETWEEN '20240101' AND '20241231' |
IN |
Value list (strings only) | WHERE MTART IN ('FERT', 'HALB') |
IS NULL |
Null check | WHERE MAKTX IS NOT NULL |
LIKE, BETWEEN and IN can be negated with NOT, for example WHERE MTART NOT IN ('FERT', 'HALB').
Strings, numbers and variables (@variable) are allowed as comparison values. The only permitted identifier is the SAP system field SY-DATUM; any other bare identifier causes an error.
Tables with many columns
The standard SAP read module has a width limit. For very wide tables, switch to a custom function module using WITH-OPTIONS:
SELECT * FROM MARA WITH-OPTIONS(CUSTOMFUNCTIONNAME = 'Z_XTRACT_IS_TABLE')
Details on setting up this module are described in the SAP extraction limits article.
Running ABAP reports
EXECUTE REPORT starts an ABAP program and reads its list output as a table.
The order of the clauses is fixed: first INTO, then WHERE, then USING, and finally WITH-OPTIONS.
The simplest call uses a variant stored in SAP:
EXECUTE REPORT 'RLT10010' USING 'VAR01'
You can also set selection parameters directly in the statement:
EXECUTE REPORT 'RLT10010' WHERE T1_LGNUM EQ '001'
For selections with a sign and an option, use the complex form. Each range has the structure (sign, option, from [, to]):
EXECUTE REPORT 'RLT10010' WHERE T1_LGNUM IN ((I,EQ,'001'))
EXECUTE REPORT 'RLT10010' WHERE T1_LGNUM IN ((I,EQ,'001'), (E,LIKE,'9*'), (I,BT,'A','C'))
Allowed signs are I/INCLUDE and E/EXCLUDE; allowed options are EQ, NE, GT, LT, GE, LE, BT and MP/LIKE.
Note
If the from-value of an EQ option contains an asterisk (*), Peakboard automatically converts the option to CP (contains pattern). So WHERE MATNR EQ '100-4*' acts as a pattern match.
Options for reports
EXECUTE REPORT 'RQMELL10' USING 'OFFEN'
WITH-OPTIONS (CustomFunction = 'Z_XTRACT_IS_REMOTE_REPORT_NEU');
EXECUTE REPORT 'RQMELL10' USING 'OFFEN'
WITH-OPTIONS (SkipTopRows = '20', UseBatch = 'true');
| Option | Meaning | Default |
|---|---|---|
CustomFunction (= CustomFunctionName) |
Name of the RFC module that runs the report | Z_XTRACT_IS_REMOTE_REPORT |
SkipTopRows |
Number of lines skipped at the top of the list output | 0 |
UseBatch |
'true' runs the report as a background job and then reads the spool list |
'false' |
The background job runs under the name Xtract on destination LOCL and times out after 300 seconds.
Calling function modules (RFC)
EXECUTE FUNCTION calls an RFC-enabled function module. Parameters are passed in up to four sections, each of which may appear at most once:
| Section | Direction |
|---|---|
EXPORTS (= EXPORTING) |
Values Peakboard passes to SAP |
IMPORTS (= IMPORTING) |
Values Peakboard reads back from SAP |
TABLES |
Table parameters, in both directions |
CHANGING |
Changeable parameters |
Within a section, parameters are separated by commas.
EXECUTE FUNCTION 'SD_RFC_CUSTOMER_GET'
EXPORTS
NAME1 = 'Th*'
TABLES
CUSTOMER_T INTO @RETVAL
Scalar return values
Use IMPORTS to read back individual fields. Each field gets its own target name following the pattern @RETVAL$columnname — the values end up together in a single-row table in which each $ suffix becomes a column:
EXECUTE FUNCTION 'GET_SYSTEM_TIME_REMOTE'
IMPORTS L_TIME INTO @RETVAL$local,
K_TIME INTO @RETVAL$kernel,
L_DATE INTO @RETVAL$date
The result is a table with one row and the three columns local, kernel and date.
Structure fields
Address a single field of a structure with structure-field:
EXECUTE FUNCTION 'Z_SD_RFC_CUSTOMER_GET'
EXPORTS
KUN_STR-NAME1 = 'Th*',
KUN_STR-KUNNR = '*80'
TABLES
CUSTOMER_T INTO @RETVAL
Note
Exactly one level is possible. STRUCTURE-FIELD works, STRUCTURE-SUBSTRUCTURE-FIELD is rejected. Structure fields are not allowed at all in the TABLES section.
Tables as a parameter value
Table-valued parameters are written directly into the statement. The first pair of parentheses is the column list, every following one is a data row:
EXECUTE FUNCTION 'BAPI_USER_GETLIST'
TABLES
SELECTION_RANGE = ((PARAMETER, FIELD, SIGN, OPTION, LOW, HIGH),
('LOGONDATA', 'USTYP', 'I', 'EQ', 'A', ''),
('USERNAME','', 'I', 'BT', 'A', 'C')),
USERLIST INTO @RETVAL
All values must be written as strings — including numbers, so '1' instead of 1. The commas between rows are optional.
The same notation also works in the EXPORTS section:
EXECUTE FUNCTION 'Z_PB_NESTED01'
EXPORTS
MAT01 = '4711',
QUANTAB = ((MATNR, LFIMG),
('HELLO', '1'),
('WORLD', '2'))
IMPORTS
QUANTAB_OUT INTO @RETVAL
A table may also sit inside a structure:
EXECUTE FUNCTION 'Z_PB_NESTED01'
EXPORTS
MAT01 = '4711',
DEEPSTR-TAB1 = ((MATNR, LFIMG),
('HELLO', '1'),
('WORLD', '2')),
DEEPSTR-TAB2 = ((MATNR, LFIMG),
('NONO', '0')),
DEEPSTR-VBELN = '0123456'
IMPORTS
DEEPSTR_OUT-TAB1 INTO @RETVAL
SAP Queries
You address a SAP Query via SELECT ... FROM QUERY. The query name consists of workspace, user group and query name, separated by |: 'G|/SAPQUERY/ME/|MEBESTWERTAN' (G = global, S = standard).
SELECT * FROM QUERY 'G|/SAPQUERY/ME/|MEBESTWERTAN' USING 'PLANT1000'
Instead of a variant you can specify the select options directly. Criteria are separated by comma or AND — there is no OR and no grouping with parentheses here, and each field may appear only once:
SELECT TOP 20 * FROM QUERY 'G|/SAPQUERY/ME/|MEBESTWERTAN'
WHERE
S_WAERS EQ 'EUR', S_MATNR MP '100-4*'
Allowed are EQ, NE, GT, LT, GE, LE and MP, plus BT 'from' AND 'to' and the complex IN ((...)) form from the report section.
SKIP is not supported for query access.
BW cubes and MDX
There are two ways to access BW cubes.
EXECUTE MDX passes an MDX statement through unchanged. So that the square brackets of MDX do not collide with the pass-through brackets, enclose the statement in |:
EXECUTE MDX |SELECT {[Measures].[0D_COST]} ON COLUMNS , NON EMPTY [0D_CO_CODE].[LEVEL01].MEMBERS ON ROWS FROM [$0D_DECU] |;
Alternatively, access a BW query with SELECT ... FROM BWQUERY and pass the variables as criteria:
SELECT * FROM BWQUERY '0D_DECU/VARDEMO01' WHERE SALESORG IN ((I,BT,'1000','4000'))
TOP and SKIP are not supported for BWQUERY access.
Discovering metadata with DESCRIBE
DESCRIBE returns no payload data, but structural information. This is handy for finding out in the preview how a table or a function module is built in the first place.
DESCRIBE TABLE 'MAKT' GET FIELDS
DESCRIBE TABLE CATALOG WHERE TABLENAME LIKE 'MAK%'
DESCRIBE FUNCTION 'BAPI_USER_GETLIST' GET TABLES
DESCRIBE REPORT 'RLT10010' GET SELECTION-PARAMETERS
Available variants:
| Statement | Result |
|---|---|
DESCRIBE TABLE '<t>' [GET FIELDS] |
Field list of a table |
DESCRIBE TABLE CATALOG WHERE TABLENAME (EQ\|LIKE) '<x>' |
List of tables |
DESCRIBE FUNCTION '<f>' GET (IMPORTS\|EXPORTS\|TABLES) |
Parameters of a function module |
DESCRIBE FUNCTION CATALOG WHERE FUNCTIONNAME (EQ\|LIKE) '<x>' |
List of function modules |
DESCRIBE STRUCTURE '<s>' |
Layout of a structure |
DESCRIBE QUERY '<q>' GET (FIELDS\|VARIANTS\|SELECTION-PARAMETERS) |
Details of a query |
DESCRIBE QUERY CATALOG WHERE ... |
List of queries |
DESCRIBE BWQUERY '<c>' GET (MEASURES\|VARIABLES\|DIMENSIONS) |
Details of a BW cube |
DESCRIBE REPORT '<r>' GET (VARIANTS\|SELECTION-PARAMETERS) |
Variants and selection parameters of a report |
Which table Peakboard displays
A statement can return several results. The variable @RETVAL decides which of them becomes the Peakboard data source.
- Without an
INTOclause the result is written to@RETVALautomatically. That is whySELECT TOP 10 * FROM MAKTneeds noINTO. INTO RESULTSETandINTO RESULTSare synonyms forINTO @RETVAL.- Only
@RETVALand variables starting with@RETVAL$are evaluated.
If several matching values exist, this order applies:
- the first real table,
- the first RFC table,
- the first structure — it becomes a table with one row,
- otherwise all individual
@RETVAL$...values are combined into a single-row table, where the part after the$becomes the column name.
If none of this fits, the Peakboard Designer reports Unable to convert result value (@RETVAL) into Peakboard data source.
Note
Target variables that are not called @RETVAL are not lost when the application runs: the Peakboard Runtime writes them into the data element of the same name. A table fills a list of the same name, a single value fills a variable of the same name. This behaviour is not active in the preview of the Peakboard Designer.
Using Peakboard variables in the statement
An XQL statement does not have to be static. Use the placeholder #[Name]# to insert the value of a data element from your project:
SELECT TOP 10 * FROM MAKT WHERE MATNR = '#[SearchedMaterialNumber]#'
You do not have to type the placeholder — the editor has a dedicated button that lists all String, Number and Boolean data elements of the project and inserts the placeholder at the cursor position. The resolve button shows you the statement with all placeholders substituted.
If the placeholder refers to a list, it is automatically serialised as an XQL table literal — exactly in the form (('COL1','COL2'), ('a','b'), ...). This lets you pass a complete Peakboard list straight into a table parameter:
EXECUTE FUNCTION 'Z_PB_IMPORT'
TABLES
IMPORT_TAB = #[MyList]#,
RESULT_TAB INTO @RETVAL
In addition you can embed real Lua code with #{ ... }#; its return value ends up at that position in the statement.
Formal grammar
XtractQL
:= (SelectCommand | ExecuteCommand | DescribeCommand)
SelectCommand
:= "SELECT" [SelectResult] SelectFieldList "FROM" (SelectQuery | SelectQueryBW
| SelectTable)
SelectResult
:= "TOP" Integer ["SKIP" Integer]
SelectFieldList
:= "*" | (SelectField {"," SelectField})
SelectField
:= (Identifier | String | StringPassThrough) ["AS" (Identifier | String |
StringPassThrough)]
SelectQuery
:= "QUERY" String [Into] ["WHERE" SelectQueryCriteria {","
SelectQueryCriteria}] ["USING" String]
SelectQueryBW
:= "BWQUERY" String [Into] ["WHERE" SelectQueryCriteria {"," SelectQueryCriteria}]
SelectQueryCriteria
:= Identifier (("EQ" | "NE" | GT" | "LT" | "GE" | "LE" | "MP") (String | Variable) | ("IN" "(" SelectQueryCriteriaRange {[","] SelectQueryCriteriaRange} ")") | ("BT" (String | Variable) "AND" (String | Variable)))
SelectQueryCriteriaRange
:= "(" (("I" | "INCLUDE") | ("E" | "EXCLUDE")) "," (("EQ" | "NE" | GT" | "LT" | "GE" | "LE") | "LIKE") "," (String | Variable) ["," (String | Variable)] ")"
SelectTable
:= ["TABLE"] (String | Identifier) [Into] ["WHERE" SelectTableWhereExpression]) [WithOptions{CUSTOMFUNCTIONNAME}]
SelectTableWhereExpression
:= SelectTableWhereTerm {("AND" | "OR") SelectTableWhereTerm}
SelectTableWhereTerm
:= SelectTableWhereFactor | ("(" SelectTableWhereExpression ")")
SelectTableWhereFactor
:= Identifier (SelectTableWhereFactorOperator | SelectTableWhereFactorNull | (["NOT"] (SelectTableWhereFactorLike | SelectTableWhereFactorBetween | SelectTableWhereFactorIn)))
SelectTableWhereFactorOperator
:= ("EQ" | "NE" | "LT" | "GT" | "LE" | "GE") SelectTableWhereFactorValue
SelectTableWhereFactorNull
:= "IS" ["NOT"] "NULL"
SelectTableWhereFactorLike
:= "LIKE" (String | Variable)
SelectTableWhereFactorBetween
:= "BETWEEN" SelectTableWhereFactorValue "AND" SelectTableWhereFactorValue
SelectTableWhereFactorIn
:= "IN" "(" String {"," String} ")"
SelectTableWhereFactorValue
:= String | Integer | Number | Variable | Identifier
ExecuteCommand
:= "EXECUTE" (ExecuteMDX | ExecuteFunction | ExecuteReport)
ExecuteMDX
:= "MDX" StringPassThrough [Into]
ExecuteFunction
:= "FUNCTION" String [(Imports | Exports | Tables | Changing) {(Imports | Exports | Tables | Changing)}]
ExecuteReport
:= "REPORT" String [Into] ["WHERE" SelectQueryCriteria {("," | "AND") SelectQueryCriteria}] ["USING" String] [WithOptions{CUSTOMFUNCTION, USEBATCH, SKIPTOPROWS}]
Imports
:= ("IMPORTS" | "IMPORTING") ImportsParameter {"," ImportsParameter}
ImportsParameter
:= Variable "=" Identifier
Exports
:= ("EXPORTS" | "EXPORTING") ExportsParameter {"," ExportsParameter}
ExportsParameter
:= Identifier "=" (String | Integer | Number | Variable | Table)
Tables
:= "TABLES" TablesParameter {"," TablesParameter}
TablesParameter
:= Identifier ["=" (Variable | Table)] [Into]
Changing
:= ("CHANGING" | "CHANGINGS") ChangingParameter {"," ChangingParameter}
ChangingParameter
:= Identifier ["=" (String | Integer | Number | Variable | Table)] [Into]
Table
:= "(" TableMaps [","] TableValues {[","] TableValues} ")"
TableMaps
:= "(" Identifier {"," Identifier} ")"
TableValues
:= "(" String {"," String} ")"
DescribeCommand
:= "DESCRIBE" (DescribeTable | DescribeQuery | DescribeQueryBW | DescribeFunction | DescribeStructure | DescribeReport) [Into]
DescribeTable
:= "TABLE" ((String ["GET" "FIELDS"]) | DescribeTableCatalog)
DescribeTableCatalog
:= "CATALOG" "WHERE" "TABLENAME" ("EQ" | "LIKE") String
DescribeQuery
:= "QUERY" (DescribeQueryGet | DescribeQueryCatalog | DescribeQueryUserGroup)
DescribeQueryGet
:= String "GET" ("FIELDS" | "VARIANTS" | "SELECTION-PARAMETERS")
DescribeQueryCatalog
:= "CATALOG" "WHERE" DescribeQueryCatalogParameter {"," DescribeQueryCatalogParameter}
DescribeQueryCatalogParameter
:= DescribeQueryWorkspace | ("USERGROUP" ("EQ" | "LIKE") String) | ("QUERYNAME" ("EQ" | "LIKE") String)
DescribeQueryUserGroup
:= "USERGROUP" "WHERE" DescribeQueryWorkspace
DescribeQueryWorkspace
:= "WORKSPACE" "EQ" String{G,S,GLOBAL,STANDARD}
DescribeQueryBW
:= "BWQUERY" (DescribeQueryBWGet | DescribeQueryBWCatalog)
DescribeQueryBWCatalog
:= "CATALOG" "WHERE" "CUBENAME" ("EQ" | "LIKE") String
DescribeQueryBWGet
:= String "GET" ("MEASURES" | "VARIABLES" | "DIMENSIONS" | ("DIMENSIONS-PROPERTIES" ["OF"] String))
DescribeFunction
:= "FUNCTION" (DescribeFunctionCatalog | (String "GET" ("EXPORTS" | "IMPORTS" | DescribeFunctionTables)))
DescribeFunctionCatalog
:= "CATALOG" "WHERE" "FUNCTIONNAME" ("EQ" | "LIKE") String
DescribeFunctionTables
:= "TABLES" | (("TABLES-STRUCTURE" | "TABLES-DATATABLE") ["OF"] String)
DescribeStructure
:= "STRUCTURE" String
DescribeReport
:= "REPORT" ((String "GET" ("VARIANTS" | "SELECTION-PARAMETERS")) | ("CATALOG" "WHERE" "REPORTNAME" ("EQ" | "LIKE") String))
Into
:= "INTO" ("RESULTSET" | "RESULTS" | Variable)
WithOptions
:= ("WITH" | "WITH-OPTIONS") "(" Settings ")"
Settings
:= Identifier "=" String {"," Identifier "=" String}
Tokens
------
Variable
:= "@" , Identifier
Identifier
:= (Letter | "_") , {Letter | Digit | "_" | "-" | "$"}
String
:= ("'" , {ANY-CHARACTER-EXCEPT-QUOTE | "''"} , "'") | (""" , {ANY-CHARACTER-EXCEPT-QUOTE | """"} , """)
StringPassThrough
:= ("[" , {ANY-CHARACTER-EXCEPT-QUOTE | "]]"} , "]") | ("|" , {ANY-CHARACTER-EXCEPT-QUOTE | "||"} , "|")
Number
:= ["-" | "+"] , DigitSequence , ["." , DigitSequence]
Integer
:= DigitSequence
DigitSequence
:= Digit , {Digit}
Digit
:= "0-9"
Letter
:= "A-Za-z"
