FAQ - Security
Operating System
Windows 10 IoT Enterprise is installed on the Peakboard Box.
Windows Updates
Windows Updates are disabled by default.
Internet Access
The Peakboard Box does not require Internet access by default.
Unauthorized Access
The Peakboard Box is started under a Windows user who has no rights except those necessary for viewing. This user cannot install anything or run any other software except the one we provide. In addition, Peakboard Box is run in a kind of “kiosk mode”, which does not allow switching to desktop mode. You will receive the administrator as well as the corresponding password on a separate card together with the Peakboard Box.
Note:
Please change the password and keep a digital record of it. It cannot be reset if lost!
Domain
The Peakboard Box can, but does not have to be integrated into the domain.
Ports
By default, all ports are blocked on the Peakboard Box except the following:
- ICMPv4 and v6
- Port 6 (Broadcast, optional)
- Port 7 (Ping)
- Port 5985 and Port 5986 (WinRM / PowerShell)
- Port 40404, 40405 and 40407 (Peakboard communication)
Virus scanner
With administrator access, it is possible, but not necessary, to install a virus scanner on the Peakboard Box. We guarantee full protection.
Encrypting Peakboard files
A Peakboard file (.pbmx) can be password-protected directly in the Peakboard Designer. Once protected, the entire file content – including all credentials for data sources, scripts, variables and resources – is encrypted and can only be opened again by entering the password.

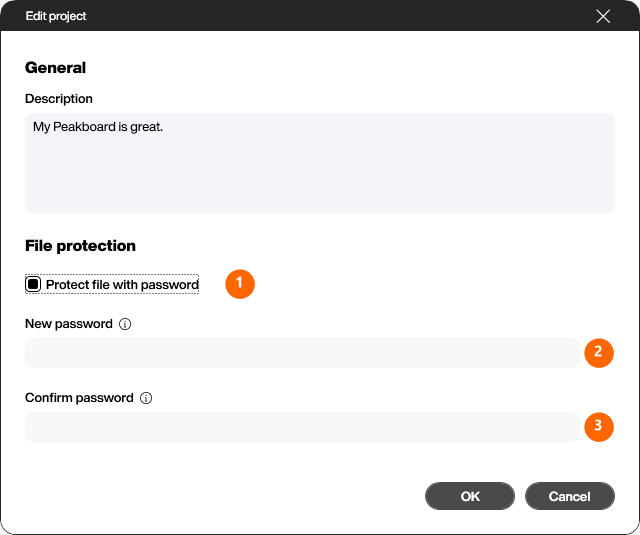

In the Peakboard Designer, open the project settings in the menu bar and select [Project info]. In the [Edit project] dialog you will find the [File protection] section.
Activate the checkbox [Protect file with password] (1) and set a strong password in the [New password] field (2). Re-enter the same password in [Confirm password] (3) to confirm. With a click on [OK] the encryption is applied the next time the file is saved.
Note:
Keep the password in a safe place. Without the password, an encrypted Peakboard file can neither be opened nor recovered.
Encrypted communication with the Peakboard Box (Port 40404/40405)
The Peakboard Designer and the Peakboard Hub communicate with the Peakboard Box over either an unencrypted or an encrypted channel. Which one is used is configured per Peakboard Box in the [Peakboard Box Settings] (Box management). The setting does not apply per request, but to the entire communication with that Peakboard Box:
- Port 40404 – unencrypted (HTTP). If the encrypted connection is not enabled, the entire communication with the Peakboard Box runs over this port – not only status queries such as the time-server check, but also the transfer of applications, credentials and access tokens.
- Port 40405 – encrypted (HTTPS with TLS 1.2/1.3). If the encrypted connection is enabled, the entire communication runs over this encrypted port.
When the encrypted connection is enabled, the Peakboard Box presents its own certificate, which is issued by the Peakboard root certification authority and contains the hostnames or IP addresses of the Peakboard Box. The Peakboard Designer validates that certificate against the Peakboard root certification authority that is added to the Windows certificate store when the Peakboard Designer is installed. This makes sure the connection really is with the correct Peakboard Box and cannot be eavesdropped on or tampered with.
Tip:
Enable the encrypted connection if credentials, access tokens and applications should be transferred exclusively over the encrypted port 40405.
Authentication with data sources
For connections to external systems Peakboard uses the authentication and encryption mechanisms provided by each source system:
- SAP – sign-in with a dedicated SAP user via the RFC interface.
- OPC UA and MQTT – certificate-based authentication. The certificates are stored in the Peakboard Designer and rolled out to the Peakboard Box when the application starts. See Adding a certificate to the certificate management for details.
- REST-based data sources (XML, JSON, CSV) and similar web services – connections use the regular HTTPS mechanism with a server certificate. Optionally you can also configure client certificates.
Data on the Peakboard Box
The Peakboard Box only keeps data from your data sources in memory while the application is running. As soon as the Peakboard application is stopped or the Peakboard Box is restarted, this data is discarded. The only data persisted on the Peakboard Box is what your application explicitly writes – for example through dedicated Building Blocks inside a script.
User administration
You configure which users may access the Peakboard Box and with which permissions through the user administration in the Peakboard Designer. A complete description of users and roles is available in the User administration article.
